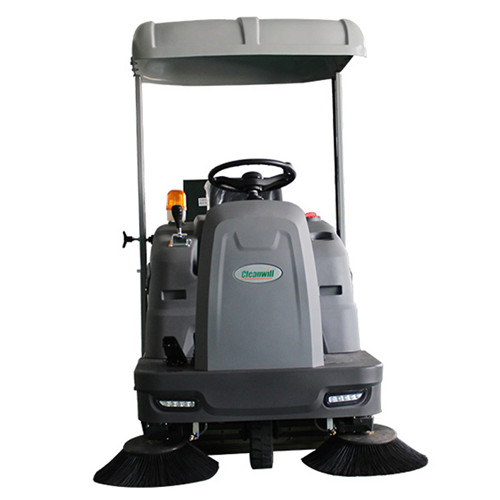

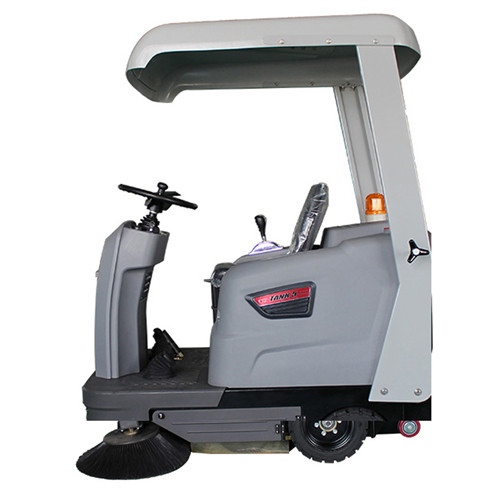

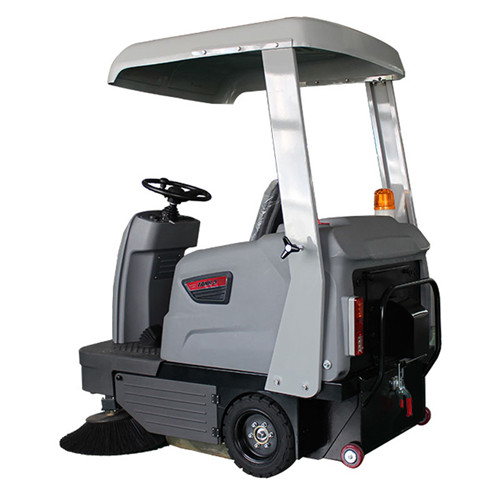

TANK5-DP Ride-on Sweeper

Rs.

TANK5-DP Ride-on Sweeper

Powerful dust control system

High performance maintenance free battery used, no leakage, no harmful gas released

Specially designed sweeping method for a theoretical dust bin usage up to 99.99%

Pressurized dust removal system to avoid secondary dust

High quality parts used for lower maintenance and service cost

Solid tires for airport use

Durable electronic control system with over current and under voltage protection

Heavier chassis for better driving stability

High capacity dust bin

Description

Product series: Ride-on Sweeper



Product ModelTANK 5-DP




Model

TANK 5

TANK5-DP

Cleaning width

1400mm

1400mm

working efficieny

8400㎡/h

8400㎡/h

Climbing ability

20%

20%

Side brush diameter

350mm

350mm

Main brush length

690mm

690mm



 Turning radius



1100mm

1100mm

Tank capacity

150L

150L

water tank capcacity

40L

40L

Traction motor power

1500W

1500W

Operation power(main brush+vacuum motor+dust shaker)

700+400+50W

700+400+50W

Max Speed

6km/h

6km/h

Working time

6-8h

6-8h

Filter area

5㎡

5㎡

Battery

3*12V 100AH

3*12V 100AH

Weight

650kg

680kg

Dimension(L/W/H)

2200*1400*1650mm

2200*1400*2160mm
